MeltingCurves

User Guide

Requirments

This program is designed to run on Windows XP SP3 or Vista SP1 systems that have the .NET 2.0 framework installed, which is freely available from Microsoft .

Program remit

Aim: This programme was developed for the rapid analysis of LightScanner mutation scanning data. The aim was for any non-homozygous wild type genotypes to be detected with the minimum of user interaction and selected for further analysis.
Error rate: As with all mutation detection methods, it is expected that the programme will not be able to successfully analyse all DNA targets for all known genotypes. However, it is anticipated that it will have a false negative rate of less than 2% for templates that are analysable.
Presence of SNPs: It is expected that PCR amplicons harbouring common SNPs will not be used. The presence of high-frequency sequence variants of this type considerably complicates and limits the automated identification of rare, potentially pathogenic variants. Where targets contain rare SNP variants, they will be identified and analysed in the same way as disease-causing mutations, and are considered as such in any measure of the programme's sensitivity and specificity.
Sample set composition: Ordinarily, as implied by the previous paragraph, it is assumed that when run with minimal user interaction, most samples will have the same wildtype genotype. However, at the price of increased user interaction, samples sets with fewer samples and/or similar numbers of mutant and wildtype genotypes can be analysed.
Assay development: It is expected that the initial assay development should consist of three stages:

1. Develop a reliable PCR assay for the target sequence that is not prone to the amplification of primer dimers or non-target DNA sequence.
2. Perform initial analysis of the fluorescence/temperature data to verify that the curve can be successfully analysed.
3. Describe the optimum parameters to use when analysing the data in the unattended/user-free mode.

The algorithm

A full description of the data manipulations preformed by MeltingCurves can be found here.

Data files

The Idaho Technology LightScanner® instrument produces various data files (Table 1); of these only one of the fluorescence data files is needed (.mlt or .unc) by MeltingCurves. All except the .tif (image) and .mat (binary) files consist of tab-delimited text. As data is collected, it is appended to the appropriate file, so that the first line of each file is represents the earliest reading. If a .tem file is not supplied, the programme will generate a temperature array which will be used in the analysis and display of the fluorescence data. Temperature readings are taken at discrete timepoints and the assumption is made that each well has the same temperature. However, analysis of actual data suggests that this is not in fact the case, and the temperature reading should be considered only to be semi-quantitative. A corollary is that the use of artificial temperature arrays does not affect the final analysis. Similarly, the final result is not affected by the choice of either the .mlt or the .unc file as data source.



File suffix	Information
.mat	File containing an 8-byte binary array.
.tif	Picture file containing an image of the micro-titre plate as seen from above.
.bkg	Unknown
.tem	Single column containing plate temperature data.
.img	1st column- Time and date stamp of the reading.   4th column- Temperature data (repeat of .tem file).   5th column- Correction factor between the .mlt and .unc files.
.mlt	96 columns; each column contains the data for a single well. Columns 1, 2 and 96 contain data for wells A1, A2 and H12, respectively.
.unc	Duplicate of the .mlt file format. The data in each row differs from the value in the .mlt file by MLT value = UNC value – IMG correction factor.

Table 1 Data files created by LightScanner.

Entering fluorescence data

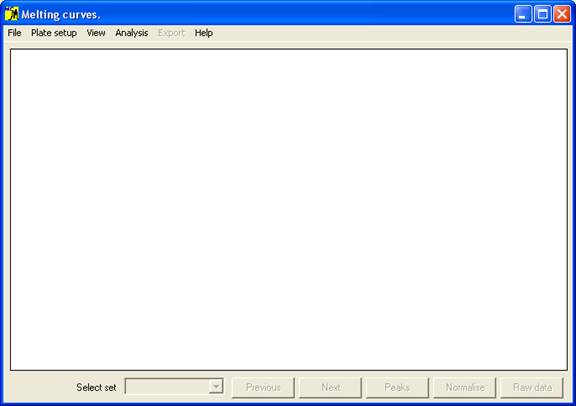

The data file is selected via the Open data file… option of the File menu (Figure 1); this allows the selection of either an .unc or .mlt file. The programme then searches for a .tem file with the same name and path as the fluorescence data file. If a .tem file is found, a message box is displayed asking if you want to use the file; if you do not accept this file or no file is found, then a second dialogue box is displayed, allowing you select a pre-existing .tem file. If you click Cancel, or if the .tem and fluorescence files do not contain the same number of data points, the programme will create a temperature array.

Selecting data sets

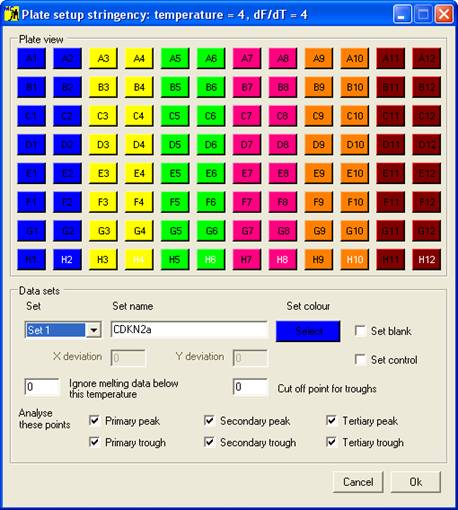

Once the melting curve data have been entered, the samples must be grouped into sets; this is done using the Plate setup window (Figure 2), which is displayed by clicking the New option on the Plate setup menu. The set properties are used by the programme when analysing the data; the optional features will be discussed in the data analysis sections, while the basic setup procedure is described below.

Setting the properties of a Set

Each set is selected using the Set dropdown list, and can be named by entering text under Set Name. Initially, the default set colour is the same as the Windows background colour; to change this, click the Select button below the Set colour label. One of 48 different colours can then be assigned to the set, and is used to identify those wells and data curves that belong to the set. Each set can contain a single blank well and/or a set of control samples, in addition to the wells containing the samples to be screened.

---

Adding wells to a set

Clicking the appropriate “well” on the 12x8 array adds that well to the active set, and its button takes the set colour. (To deselect a well, either click the button a second time or add the well to a different set.) The order in which the wells are added to the set is stored and used when the results exported or when melting curves are drawn. Pressing 'R' or 'C' keyboard keys when a well has focus will add all other wells in that row (R) or column (C), respectively, to the current set.

Adding a blank to a set

Blanks are added to a set in the same way as data wells, except that the Set blank check box must first be ticked. (The blank wells are identified by the white text on their buttons.) Clicking on a 'Blank well' button converts the well to a normal data well. Since only one blank is allowed per set, selecting a second well as a blank removes the first one from the set. Sets do not require blanks for data analysis.

Adding control wells to a set

A set can contain no controls, one control or a number of controls samples. Adding a control is done in the same way as adding a blank, except that the Set control check box is ticked. Also, when Set control is ticked, the X deviation and Y deviation text boxes are enabled. The function of these values will be described in the data analysis sections. Clicking a well that has already been assigned as a control removes that sample from the set.

Saving the plate setup and viewing the fluorescence data

To accept the plate setup, select the OK button, which will close the Plate setup window. If melting curve data have been entered, the programme will now prompt the user to reanalyse the melting curve data (Figure 3). If the data consist of more than one set, the first set will be displayed; other sets can either be scrolled through sequentially with the mouse scrollwheel, or selected from the dropdown list at the bottom of the window. Plate setup information can be saved to a text file via the Save and Save as… options of the File > Plate files menu. Once saved, this file can be re-entered, allowing one setup file to be used for multiple .unc/.mlt files. To discard the plate setup press the Cancel button.

Viewing data

The data undergoes two processes of transformation. The first step converts each initial melting curve (fluorescence, F vs. temperature, T) to its approximate first differential; i.e. the new curve plots the decrease in fluorescence per unit of temperature (-dF/dT) vs. temperature. The second step normalises the data and picks maximum and minimum points on the curve (referred to as data points). These data points are then used by the programme to determine the samples’ genotypes.

---

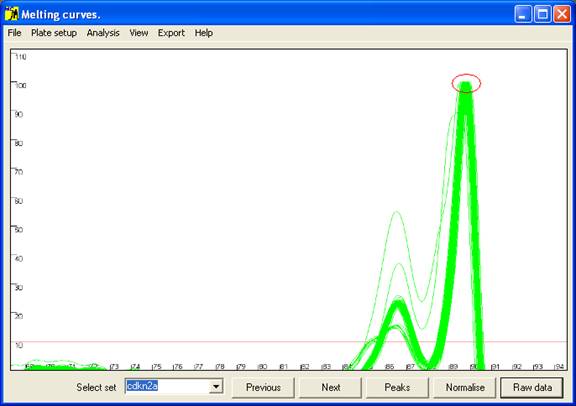

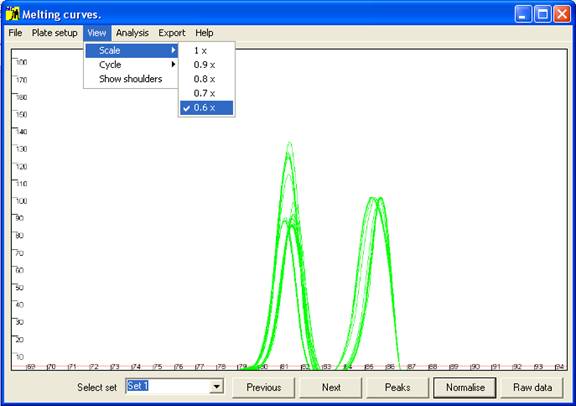

Initially the data are drawn in a partially normalised manner (Figure 3) with the height of the final peak fixed at 100. (For most DNA fragments, this last peak is the largest, but when this is not the case the scale can be adjusted via the Scale option of the View menu (Figure 4).) These curves are not yet normalised relative to the temperature axis, and show the intra-assay variation; thus in Figure 3, all 92 samples lay within 0.25^oC of the average value. This view can be reproduced by pressing the Raw data button (bottom right of the interface).

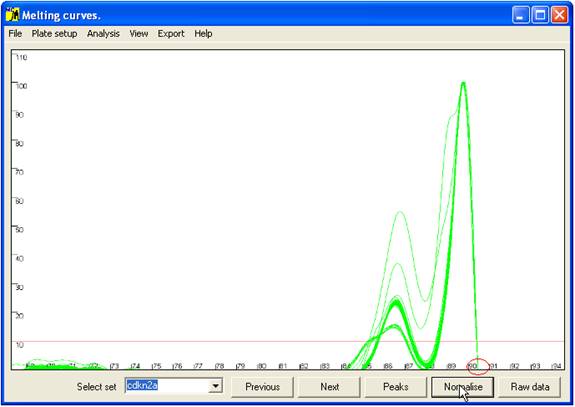

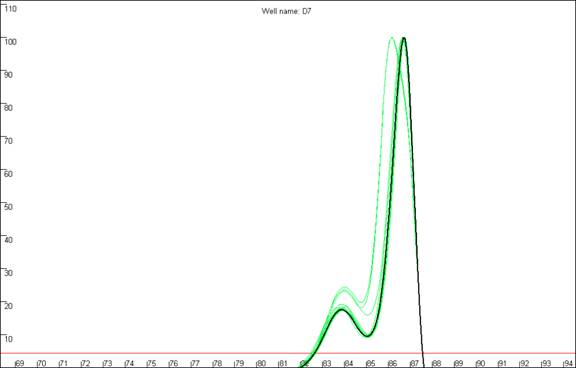

To view the normalised data, click the Normalise button (Figure 5). This translocates the curves along the temperature axis such that all the curves have a common end point (red ellipse in Figure 5). This view enables subtle differences between the curves to be seen.

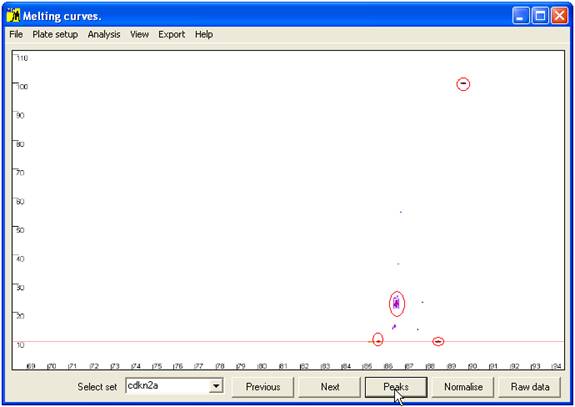

Rather than comparing all points along the curve, only the positions of maxima (peaks) and minima (troughs) are compared; these points are revealed (and the curves hidden) by the Peaks button (Figure 6). At each minimum or maximum, the points corresponding to the individual samples are grouped into clusters. For each individual sample, the relationship between its data point and the cluster is the basis on which genotype assignment is performed. The Raw data, Normalise and Peaks views can also be accessed while the cursor is in the graph area, via the mouse buttons. These cycle the views as follows:

• Left button: Raw data to Normalise to Peaks to Raw data.
• Right button: reverse of above.

Data analysis

Melting curve analysis

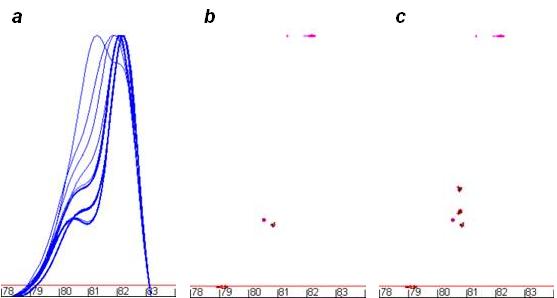

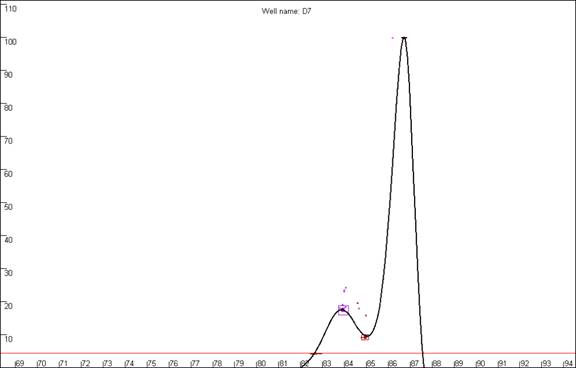

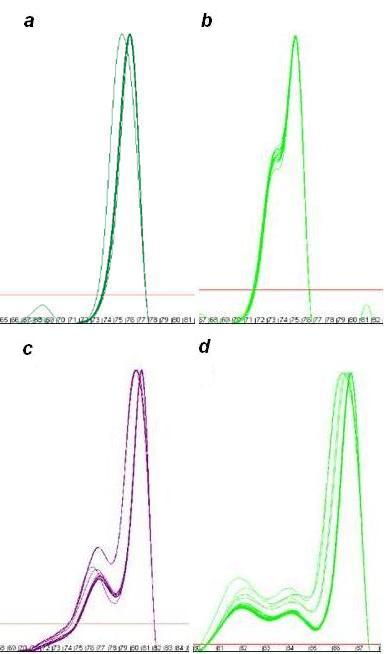

The MeltingCurves is designed to analyse melting curves that contain up to three distinct peaks (Figure 7). If two domains have very similar melting temperatures (T_m) then the peaks will merge to create a peak with a shoulder (Figure 7b). The position of such a shoulder tends to be very sensitive to intra-assay variation, and so is not used for the data analysis. However other points on the melting curve may be much less affected by such variability, so that analysis of these complex curves is usually still possible.

Figures 7a and 7b also show individual curves that contain small extra peaks (at 68.5^oC in Figure 7a and 81^oC in Figure 7b). These aberrant peaks generally result either from the presence of an extra spurious amplification product or from general background “noise” in faint samples. Generally speaking, curves that contain these secondary peaks produce unreliable results. Another problem arises if an individual reaction happens to contain a strong primer dimer product but little or no target DNA product; in this case, the primer dimer peak will be set to 100 units. Its exact location will be sequence-dependent, but it will be placed well to the left of the other samples.

In the Raw data view, the program will display all curves, but in the Normalise and Peaks views it ignores very faint samples. However, samples do occur that could be correctly scored if these aberrant features were disregarded; this can be done by manually setting the cut-off parameters.

Setting cut off parameters

Cut-off values are specific to each data set, and are therefore entered using the Plate setup window. These values are saved to disc together with the Plate setup data, and so can be used to analysis subsequent LightScanner runs. To demonstrate the effect of the cut-off parameters, Figures 8 and 9 show curve data from a file that includes samples with aberrant peaks. (It should be noted that these samples exhibit a large intra-assay variation with respect to temperature, and so are not reliable.) Figure 8b shows two curves with major peaks at approximately 52.5ºC and three other curves with minor peaks below 20 dF/dT units. When these curves are displayed in the Normalise view, the two erroneous major peaks are shifted to the right and it is apparent that a significant proportion of the denaturing information has been lost (Figure 8c). In the Peaks view the program has detected the maximum peak points for these two curves as well as extra data points for the curves with the minor peaks (Figure 8d).

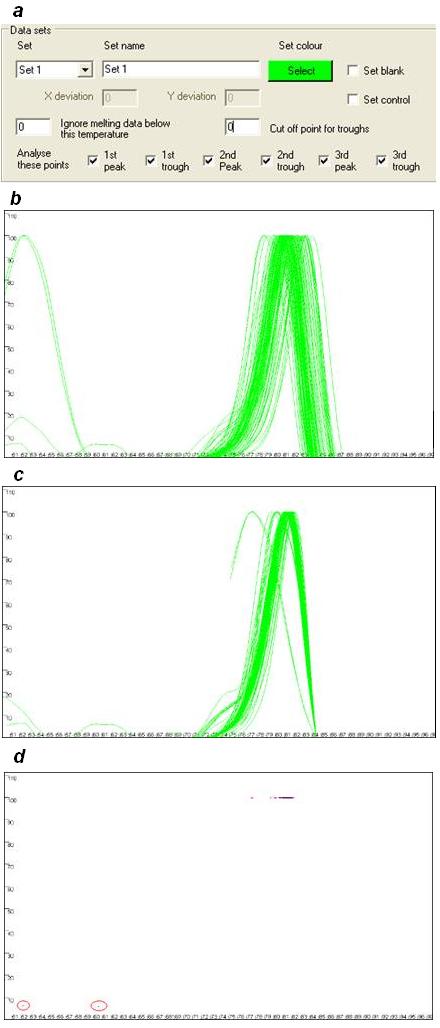

Figure 8a shows the Data sets panel from the Plate setup window, the minimum temperature (x axis) cut-off parameter is set by entering a value between 50 and 100 in the Ignore melting data below this temperature box. The dF/dT (y axis) cut-off is entered in the box labelled Cut off point for troughs. Figures 8b, 8c and 8d show the resultant graphical displays for Raw data, Normalise and Peaks view respectively.

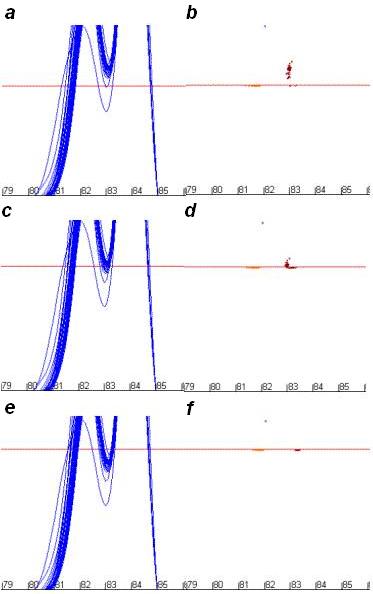

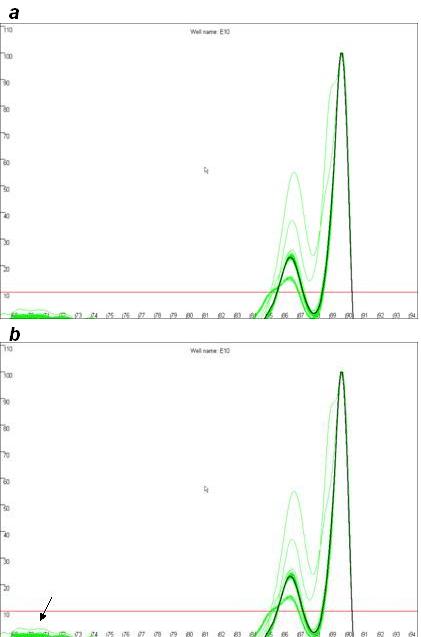

Figure 9 shows the same data analysed in Figure 8, but with the cut-off values set to 70^oC and 20 dF/dT units. To identify the cut-off values, red lines are drawn across the graph at the appropriate values (Figure 9a compared to Figure 8a). Since the two erroneous major peaks are below the 70^oC cut-off value, they are ignored in the Normalise and Peaks modes. Similarly, since the minor peaks are below both the 70 ^oC and 20 dF/dT units cut-offs, these spurious data points are disregarded too. As stated earlier, these cut-off parameters can be saved with the plate set-up data. However, since the degree of displacement of curves along the temperature axis can vary between runs, these cut off points should not be placed too close to the features to be analysed

Figure 9a. shows the Data sets panel from the Plate setup window as seen in Figure 8a; the values are set to 70^oC and 20 dF/dT units. Figures 8b., 8c. and 8d. show the resultant graphics for Raw data, Normalise and Peaks views respectively.

Cut-off parameter considerations

Temperature cut-off

The program analyses a run by starting with the first reading (i.e. lowest temperature) and identifying the first peak maximum. From this point, it scans backwards to find the point at which the dF/dT value falls below the set cut-off (or 0) value. During this phase, the temperature cut-off is ignored for these troughs and only the dF/dT cut-off is considered. This is because of the way in which the the LightScanner collects data, and to avoid occasions where some samples meet the temperature cut-off before the dF/dT cut-off while others do not. (In the latter case, this would produce an abnormal data point distribution, which it would not be possible to analyse with any confidence.)

dF/dT cut-off

To optimize the determination of data points, it is important that the dF/dT cut-off is chosen to be well clear of (either above or below) any cluster of data points (at least of those that represent the wild-type genotypes, and if possible, of the outlying samples too). For example, Figure 10 shows the effect of repositioning the dF/dT cut-off relative to a trough. If none of the wild-type curves is intersected by the cut-off (a-b) the distribution of points is a result of both the temperature and dF/dT values, allowing both variables to influence the final analysis. In contrast, if most of the curves are intersected by the cut-off line (e-f) only the temperature value varies between different DNAs’ melting profile, with poor discrimination as a result. If only a proportion of the curves are intersected by the cut-off line (c d) some data points are well resolved, as in a-b, while others are not, as in c-d. These effects reduce the accuracy of the analysis and increase the likelihood of genotype calling errors. It must also be appreciated that if the trough is bisected by the temperature axis, a similar effect will be seen. If the cut-off value cannot be placed below the trough, or it lies at dF/dT=0, then it is better to place the cut-off value above the cluster of minimum points.

Curve viewing options

As stated earlier, curves can be viewed as data analysis points (Peaks view), normalised data (Normalise view) or raw data (Raw data view). These views are accessed by either pressing the left or right mouse buttons or through the three buttons at the bottom right of the program interface. When using the mouse buttons the focus will move to the appropriate button. These views can be modified via the View menu and the remaining buttons at the bottom of the user interface. The Scale function button was described earlier and affects all the views. The Cycle function highlights each curve in turn, while displaying that curve’s well address in the centre top position of the graph area (Figure 11). (This function is only available in the Normalise and Peaks views; if it is selected while in Raw data view, the display is converted to the Normalise view.) Each curve can be highlighted in turn by pressing the Next or Previous buttons while in Manual mode (View > Cycle > Manual) or automatically by selecting Automatic from the Cycle submenu. When using the Automatic feature the user is prompted to enter a time interval after which the next curve is highlighted. Only the curves belonging to the current set are highlighted, and they are displayed in the same order as they were entered in the Plate setup window. Clicking the Reset option of the Cycle menu will set the current curve to the first curve of the set

In the Peaks view, only data points at the curves’ local maxima and minima are normally shown. However, selecting the Show shoulders option marks an inflection point in the curve by a cross (Figure 12). These shoulders typically demonstrate a high degree of inter-assay variation, and so are not used in the program’s mutation-screening algorithm; however; they can be used to manually create subsets. Therefore, activating this feature enables two options in the Create sets submenu; these options will be discussed later.

It must be noted that situations will arise in which curves have identical genotypes, but due to intra-assay variation some are ascribed a peak/trough while others are marked as a shoulder; similarly some may be given a shoulder and others nothing. In the former case, these DNA fragments will not be suitable for analysis by the present method.

Curve analysis options

Sample genotypes can be determined either by eye or automatically. To illustrate these two methods, the data shown in Figure 13 will be used in the following sections.

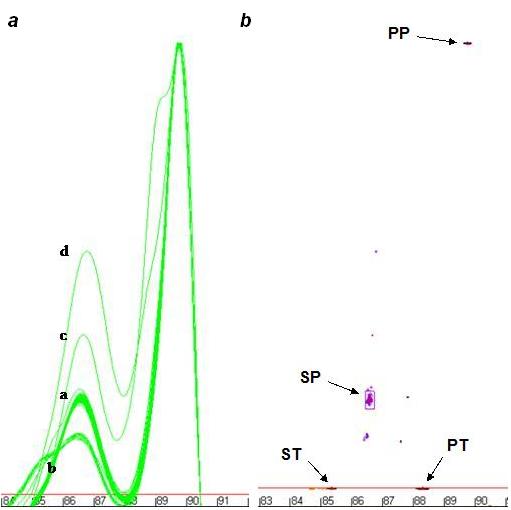

It can be seen that this set of samples contains four easily identifiable genotypes labelled a (wildtype), b (common variant) c and d (rare variant) one of which contains a prominent shoulder; these will be referred to as a13, b13, c13 and d13. The wildtype curves have three data point clusters which are labelled PP – primary peak, PT - primary trough, SP – secondary peak and ST – secondary trough. As stated above, shoulders tend to be very variable, and care must be taken when working with curves that contain them. As an example of this, see Figure 14, in which three replicate melting analyses of the same samples (reruns of the same microtitre plate) are shown. It can clearly be seen that the appearance of curve c13 differs considerably between runs, especially with respect to the shoulder. In contrast, the profiles of each curve in the sets a13 and b13 are much more consistent across the replicate runs.

Selecting genotypes by eye

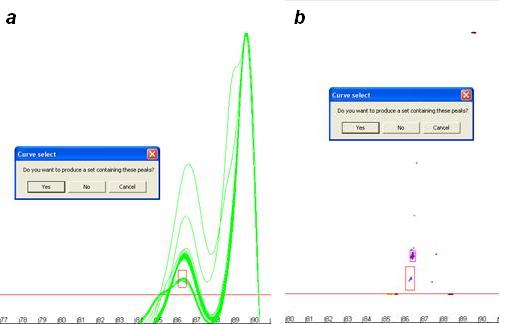

Curves can be selected by similarity to a standard curve or by the presence of a data point/shoulder within a user-defined cluster. These functions are activated via the Create sets submenu of the Analysis menu. (Functions that depend on the positions of shoulders are only enabled if the Show shoulders option has been selected.)

Creating sets by similarity to a selected curve.

To create a sample set containing samples with a common genotype, press the Next and Previous buttons at the bottom of the user interface until a curve is highlighted that best represents the genotype you wish to select (Figure 15). Then select the Selected curve… option and enter the temperature and dF/dT range in the input boxes. In this example, these values can be quite wide (temperature = 0.5, dF/dT = 4), since the data points for the other genotypes do not lie close to those of genotype a13. After the last value is entered the Plate setup window will appear, and those curves resembling the one selected will be moved to a new set. The set’s name will be in the format of “Subset of ” & “current set name” & “(n)”, where n is the number of subsets created from that set. The highlighted curve will be used as the new set’s control, while the selected temperature and dF/dT range will be used as the X deviation and Y deviation values (see below of a description of these values). When the Plate setup window is closed and the data reanalysed the selected curves will now be shown as a new set (Figure 15)

---

Creation of sets by selecting peaks, troughs and/or shoulders

Alternatively, genotype sets can be created by defining a region and selecting all curves that have a data point (Selected peaks…), shoulder (Selected shoulders…) or either one (Selected peaks and shoulders…) lying within that region. To do this, select the option from the Create sets submenu and then right click the graphic window where you want the region to be centred on. Two input boxes will again be displayed for the desired temperature and dF/dT ranges. A box will be drawn on the screen showing the region you have selected (Figure 16), if this is correct click ‘Yes’ on the message box and the new subset will be created as above. The creation of sets from shoulders or shoulders+peaks is performed in the same manner.

Automatic selection of genotypes

Using the Export menu it is possible to automatically analyse the genotypes of either the whole plate (All sets to file) or the current set (Current set to file) and save the results to a tab-delimited text file with a .xls extension, that can be viewed as a spreadsheet. The genotypes are scored by similar criteria to those used in the manual selection described above. For each set, the position of each data point cluster is found. The cluster’s size can be either calculated by the program (see “Setting exclusion stringency”, below) or defined by the use of control samples. Once the cluster properties have been defined, the program analyses each curve, to determine if all of its data points lie within the cluster boundaries. If one or more data points are not within the cluster, that sample is determined to be non-wildtype.

Setting exclusion stringency

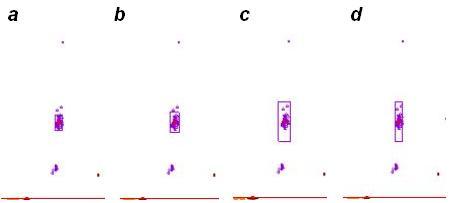

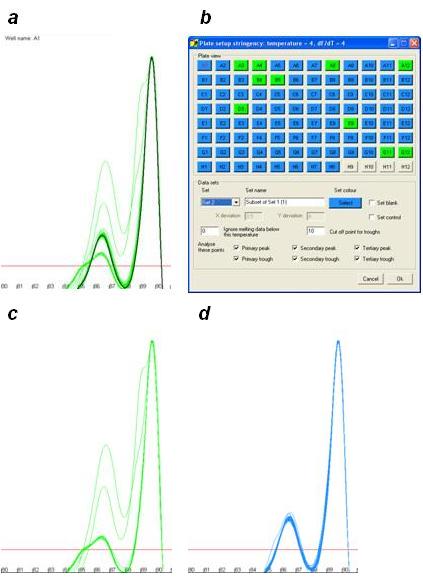

Figure 13b shows the areas where the data points for the commonest genotype are clustered. The centre point of these clusters can be defined either by the user (by adding control samples) or by the program. If the centre points are derived from control samples, it is possible to set the temperature and dF/dT range of the cluster. (This is done in a similar manner to setting the size range of the region when creating sets from peaks etc. as above.) It should be noted that the same range is applied to all the data clusters. To set these values, open the Plate setup window, select the Set control check box, and enter the values in the X deviation and Y deviation boxes.

If either of these boxes is set to 0, then the program will calculate both ranges automatically. The size of the cluster is set as a multiple of the samples’ MAD value. (MAD is a statistic similar to the sample standard deviation.) A sample is then determined to be in the expected range if it lies within a certain number of MADs from the centre point. The number of MADs can be set via the Stringency submenu for both the temperature and dF/dT range. In the Peaks view, a box around the data points shows the size and position of each cluster, while the cluster centre point is shown as a red circle (Figure 17).

Export file format

When opened as a spreadsheet, the first row contains the filenames of the data file and the plate setup file; however, if the setup was changed or created by user input then the phrase “User settings” is also shown. The next 10 rows contain a summary of the results in the layout of a microtitre plate; each cell represents a well, and if a sample is scored as indistinguishable from the wildtype control that cell is labelled “Same”. On the other hand, if it has been scored as different, the cell contains a number that indicates how many data points it failed by (see Figure 18).

The remainder of the output file is a list of the samples that were selected during the Plate setup. This list is ordered by set, with the sample order reflecting the sequence in which the samples were added to the set. Table 2 shows part of a typical file; cell B14 shows the name of the set, while cell A17 indicates the source of the cluster centre points; in this example it has the value ‘median’, since no control samples were present in the plate setup. (If control samples had been used to determine the centre point, this cell would contain a list of the control well addresses.) The remainder of row 17 shows the cluster centre points and their ranges, in the order (primary peak, primary trough, secondary peak, secondary trough, tertiary peak, tertiary trough), with each cluster described in the order (temperature centre point, temperature range, dF/dT centre point, dF/dT range). In each following row, the values of each individual data point are then shown, in the same order as row 17. Each temperature or dF/dT value is followed by its position (“In” or “Out”) relative to the data points cluster.

	A	B	C	D	E	F	G	H	I
14	Set1	CDKn2a
15		Primary peak				Trough
16		Temperature	Range	dF/dT	Range	Temperature	Range	dF/dT	Range
17	Median	89.7449	+/-0.105	570	+/-0.1	88.6131	+/-0.12	57	+/-0.1
18	A1	89.78233	In	570	In	88.61913	In	57	In
19	A12	89.75943	In	570	In	87.56545	Out	81.2141	Out

Table 2: Table showing part of the sample data from an exported results file. Sample A1 is the same as the wildtype curve whereas sample A12 differs from the wildtype curve at the primary trough data point, due to a high dF/dT value. The letters and numbers in italics represent the column and row address of the cells when opened in Excel

At the end of each sample row are four columns that summarize that sample’s properties:

• The first shows the Overall score of the sample; ‘Same’ indicates that the sample genotype has been determined to be the same as wildtype; otherwise (the sample is determined not to be wildtype) the number of aberrant data points is stated.
• The next two columns show the sample’s fluorescence intensity, as a ratio to a blank and in absolute terms. (If a blank was included in the set, the ratio between the sample’s first data row value (in the .unc or .mlt file) and the blank’s value is shown. However, if no blank was present, then the displayed value is the ratio between the sample and the faintest sample’s value.
• The final column contains a value that indicates the quality of the curve data.

Curve Quality score

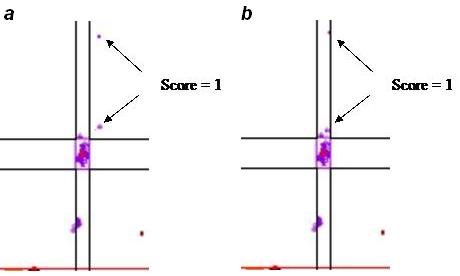

Figure 19b highlights a curve that contains a region disconnected from the main curve area, whereas Figure 19a shows a curve that lacks this feature. In our experience, curves that display this feature produce less reliable results than those that do not. In this example, the curve highlighted in Figure 19a can be seen to lie within the envelope of all the other “a13 genotype” curves. In contrast, the curve highlighted in Figure 19b can be seen to lie above the other curves at the secondary peak. This sample’s curve consistently lies above the other curves in this region, as can be seen again in Figure 14.

Fully automated analysis

Once the optimum plate set up has been determined, it is possible to analyse multiple LightScanner files with no user input. This is done by first creating a plate setup file and placing it in the same folder as the data files, and then clicking the Batch menu ( Files > Batch) and selecting the folder. The results files are named by appending the plate setup file name to the data file name and are saved to the same folder as the input files.

With this option it is also possible to analyse each data file with multiple plate setup files; each plate setup file can be configured for different control samples and hence genotypes. The program will search all subfolders and perform the analysis on each folder. Therefore it can analyse distinct sets of data files with different plate setup files, each set of files in a different subfolders.
